Appendix 4 •

Sketches and data from Chilean state railways diagram book

Please note that the sketches are diagrammatic only, and in some respects are almost caricatures of the actual locos rather than scale drawings. The scans were very kindly supplied by Señor Raul Moroni of Santiago.

1a
Sketch of class 'a' 0-6-2Ts.

1b

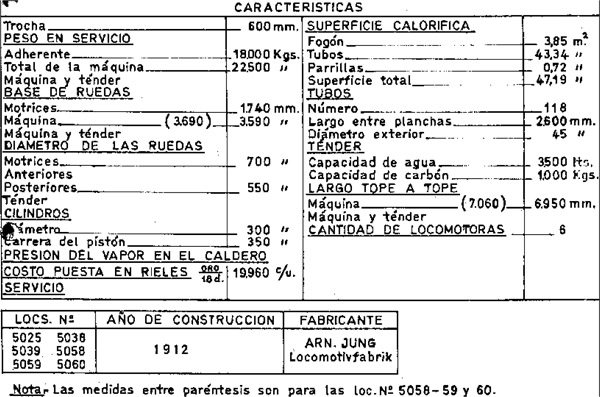

Data for class 'a' 0-6-2Ts.

2a

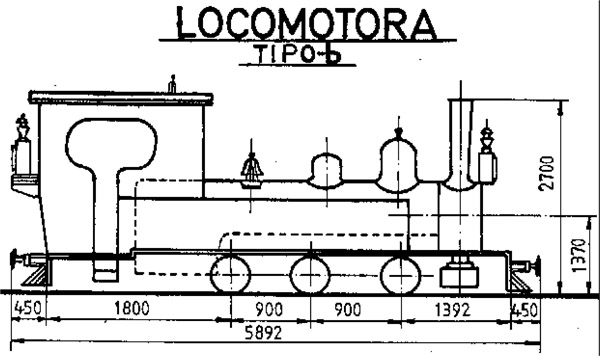

Sketch of class 'b' 0-6-0Ts.

2b

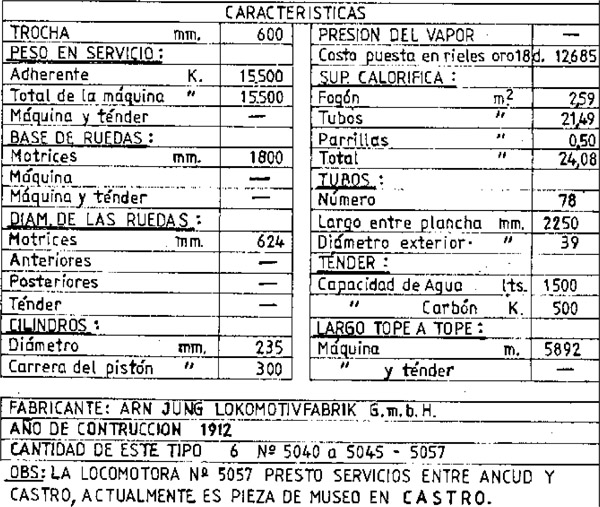

Data for class 'b' 0-6-0Ts.

3a
Sketch of class 'c' 0-4-0Ts.

3b

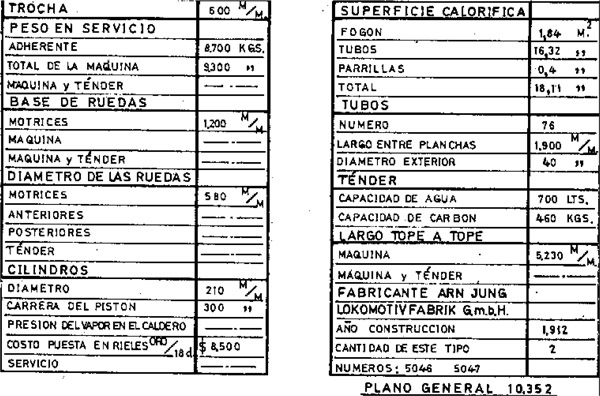

Data for class 'c' 0-4-0Ts.

Date of diagram book is unknown.
